Materialfluss 4 - GKM Siebtechnik fine and ultrafine sieves and screeners

GKM Siebtechnik

Fine and Ultrafine Sieving Technologies

GKM Siebtechnik offer know-how, test facilities and equipment for Particle Fractionation, Dedusting and Control Screening.

GKM Siebtechnik industrial screening process equipment logo

The GKM Siebtechnik Product Range

GKM Siebtechnik designs and produces in Germany and sells its range of screening machines and flexible screening system solutions worldwide with multiple references in all industry sectors.

All GKM Screening machines feature modular construction and expandable design, delivered fully assembled ready to operate, self-centering screen assembly, manual or automated deck lifters, dust-proof, various anti-blinding systems, maintenance friendly with easy on-site screen re-meshing, competitive prices and short delivery periods.

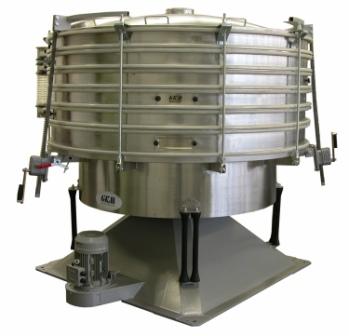

GKM-Siebertechnik Ultimate Tumbler Screening Machine

Ultimate Tumbler Screening Machine


The ultimate tumbler screening machine is ideally suited to separate and de-dust dry, powdered and granular products. Particularly suitable for high feed rates and multi deck separations of fine, lightweight and difficult to screen products.

Slow speed, 3D panning motion for optimal screening, Low acceleration with gentle movement minimising product degradation and maximising maintenance intervals.

6 decks per machine giving up to 7 fractionations. Feed rates up to 50,000 kg/hr

Ultimate Tumbler Screening Machine


The ultimate tumbler screening machine is ideally suited to separate and de-dust dry, powdered and granular products. Particularly suitable for high feed rates and multi deck separations of fine, lightweight and difficult to screen products.

Slow speed, 3D panning motion for optimal screening, Low acceleration with gentle movement minimising product degradation and maximising maintenance intervals.

6 decks per machine giving up to 7 fractionations. Feed rates up to 50,000 kg/hr

GKM-Siebertechnik Ultimate Tumbler Screening Machine

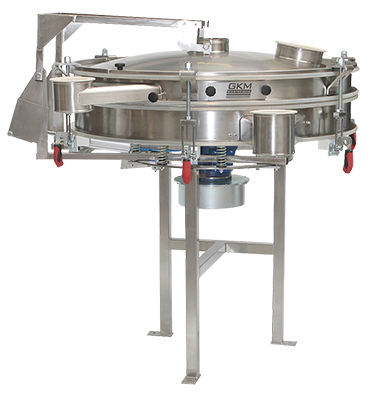

Vibrating Tumbler Screening Machines


Particularly suitable for control-, separation- and dust-removal screening of high-value products. Drive by vibratory motor, 1-3 decks per machine giving up to 4 fractionations. Feed rates up to 5,000 Kg/Hr. For more information on the Vibrating Tumbler Screening Machines, you can view the PDF on this product – and feel free to download a copy.
Vibrating Tumbler Screener KTS-VS

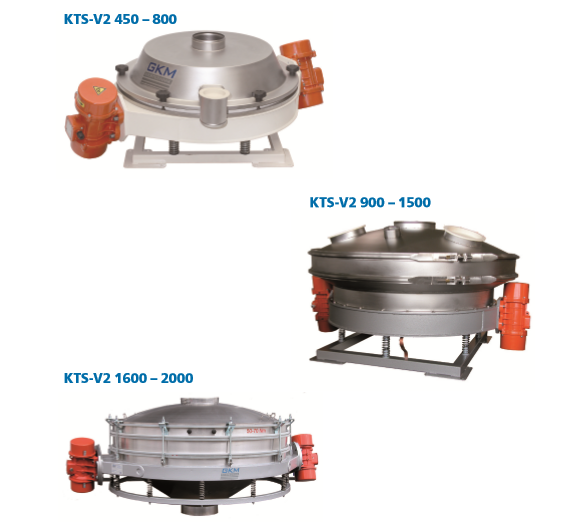

Vibrating Control Screening Machine


Suitable for all kinds of control- and safety screening with high capacities for dry and wet products.

Drive by laterally attached vibration motors, 1-2 decks per machine giving up to 3 fractionations. Size range from 450 to 2000 mm Ø, Feed rates up to 200,000 kg/hr.


Milk Powder & Baby Food Screener.

There is also a special design Milk Powder and Baby Food Screener available. View the PDF’s for more information and feel free to download a copy.

Vibrating Control Screening Machine


Suitable for all kinds of control- and safety screening with high capacities for dry and wet products.

Drive by laterally attached vibration motors, 1-2 decks per machine giving up to 3 fractionations. Size range from 450 to 2000 mm Ø, Feed rates up to 200,000 kg/hr.


Milk Powder & Baby Food Screener.

There is also a special design Milk Powder and Baby Food Screener available. View the PDF’s for more information and feel free to download a copy.

GKM Ultra-Vario-Sonic Cleaning System


This ultrasonic system delivers a much more efficient sieving action especially with very fine screen sizes. The throughput rate increases significantly on an equivalent surface area. In addition, blinding and sticking of difficult to screen products is prevented. This system is especially suited for hygienic/sanitary sieving requirements in the Food and Pharma Industries.

Test Facilities


To help specify the correct type and size of screener for your product and throughput GKM has screening test facilities for performing pilot trials, the results of which form the basis of GKM’s recommendation for the right machine for your process. Please contact us below for further information.
